Wafer Butterfly Valve (Half Shaft Without Pin)

Configured to your size, pressure and application

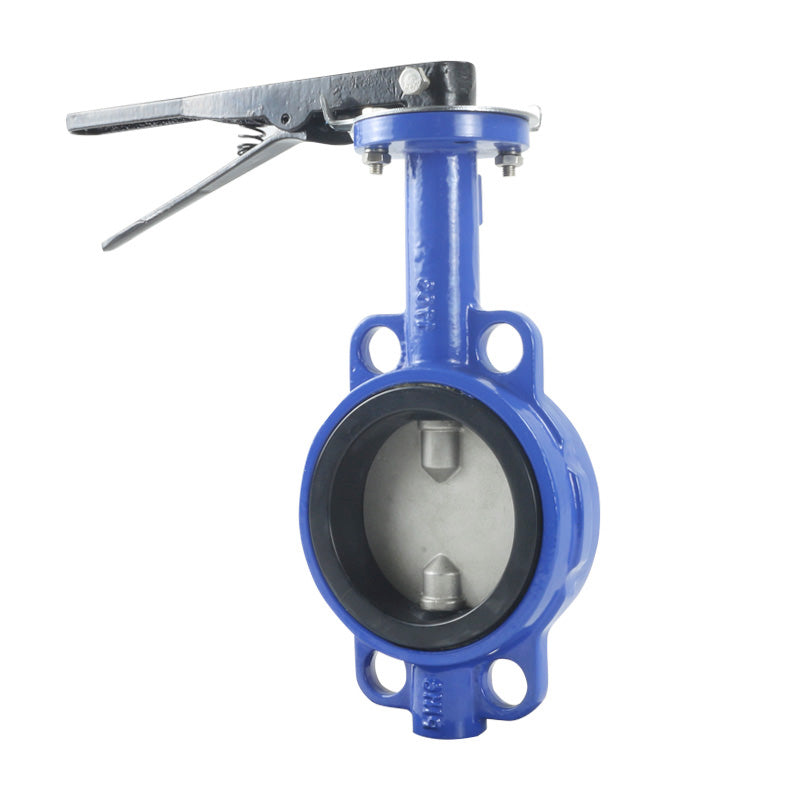

Wafer Butterfly Valve (Half Shaft Without Pin)

Product Facts

  • Size2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in
  • PressurePN16 (200PSI)
  • MaterialDuctile iron
  • ConnectionWafer
Project-specific documentationTell us which inspection records or certificates your project requires.

Certification and final configuration are confirmed for the quoted product.

Request a QuoteCompare Models

Product specifications

Specifications

Size
2 in; 2.5 in; 3 in; 4 in; 5 in; 6 in; 8 in; 10 in; 12 in
Pressure
PN16 (200PSI)
Material
Ductile iron
Connection
Wafer

Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.

Technical Drawings

Reference drawings support requirement review. Final dimensions are confirmed against the RFQ before quotation.

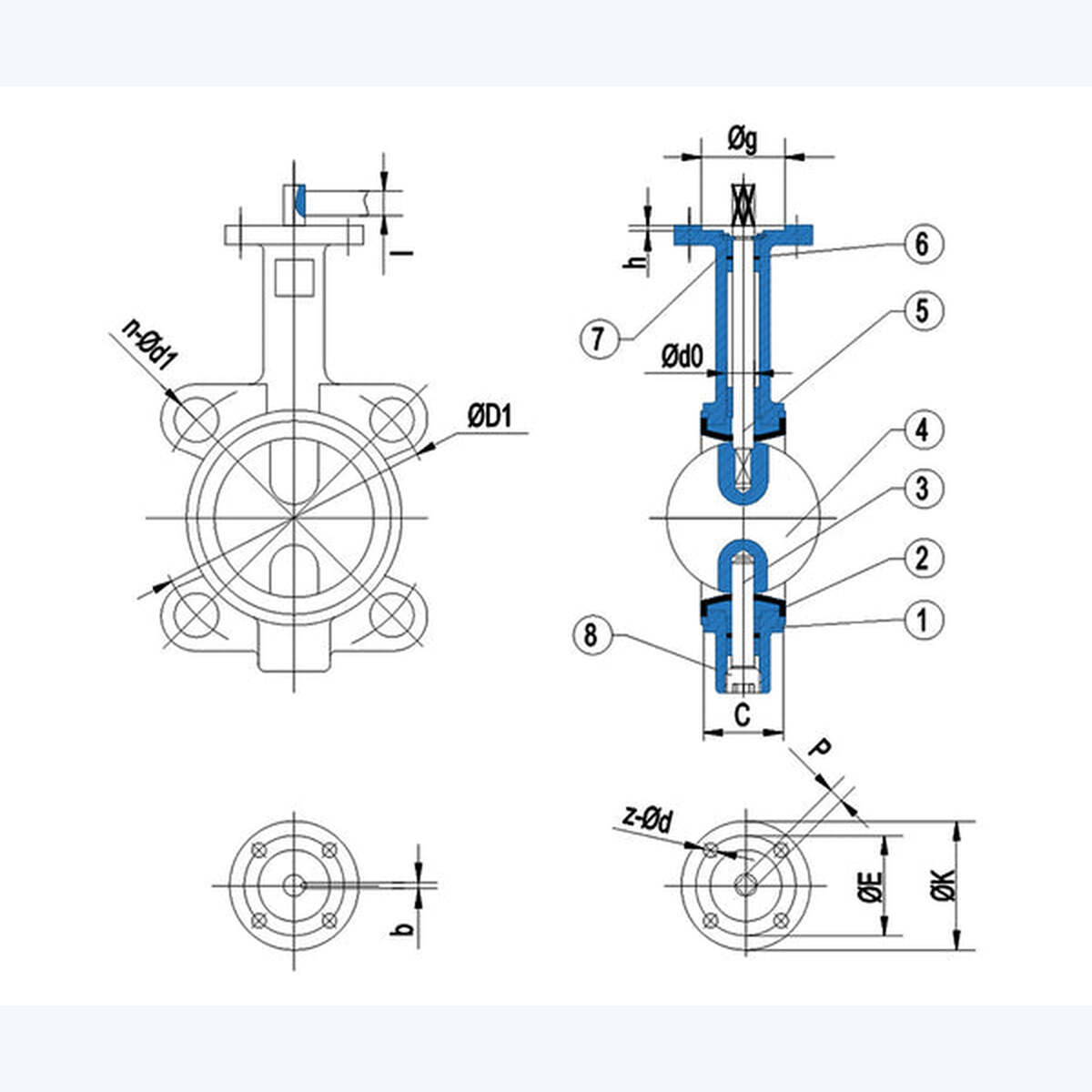

Wafer Butterfly Valve (Half Shaft Without Pin) technical drawing

Technical Data

Published data pages are organized here so the product gallery remains visually focused.

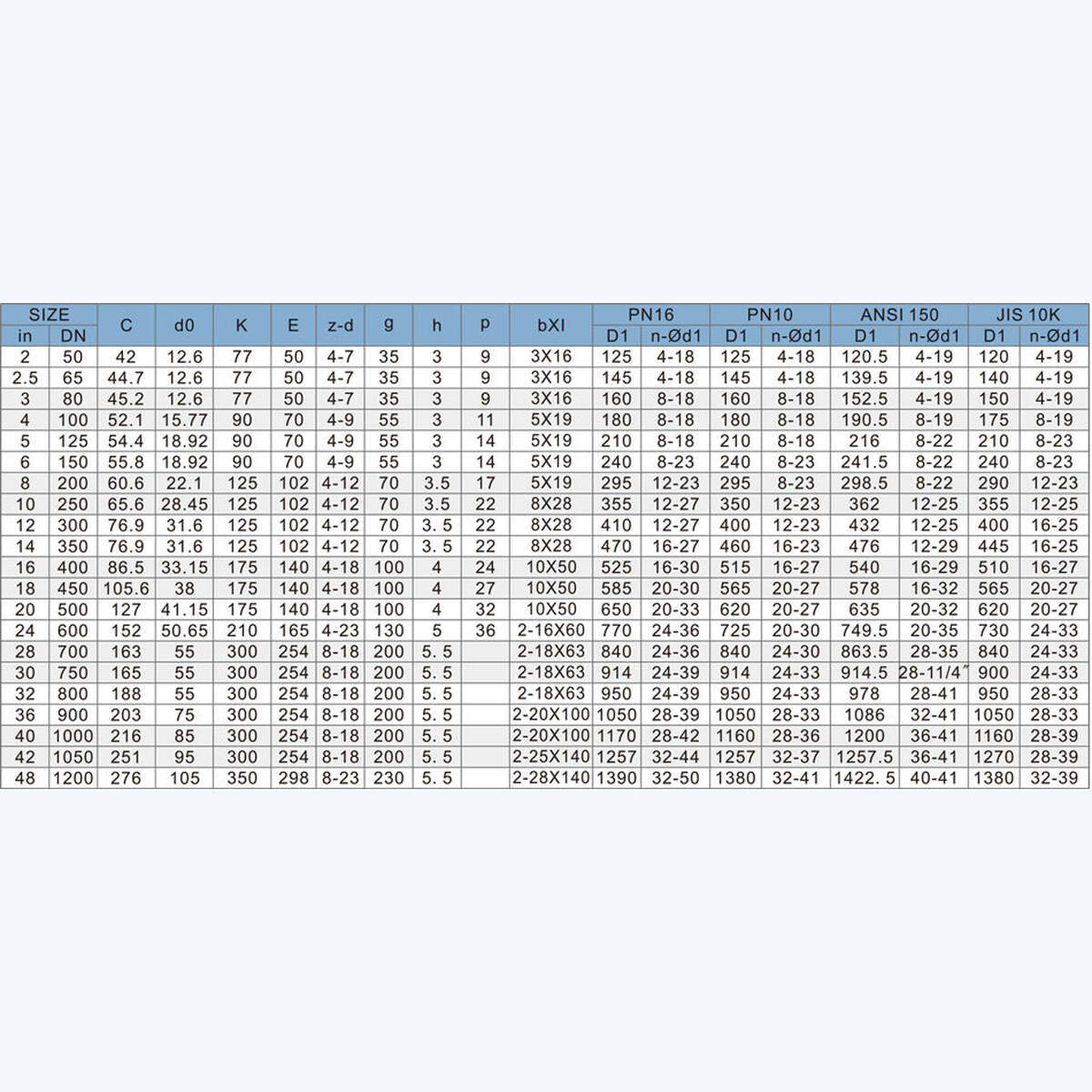

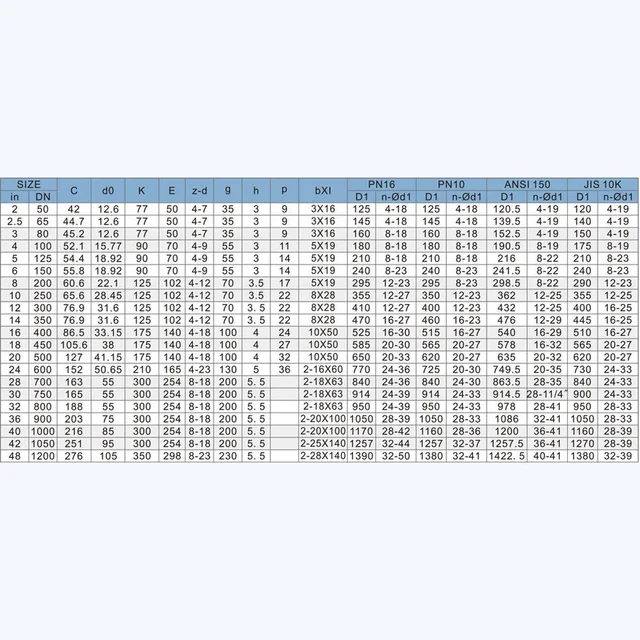

Wafer Butterfly Valve (Half Shaft Without Pin) technical data page

Procurement Summary

Published facts for this product include Size: 2 inch, 2.5 inch, 3 inch, 4 inch, 5 inch, 6 inch, 8 inch, 10 inch, 12 inch; Pressure: PN16 (200PSI); Material: Ductile Iron; Connection: Wafer. Share the required model, project specification and document list for confirmation before quotation.

Open the Buyer Comparison Guide

Document Status

Required documents are confirmed for the quoted product and project requirements.
