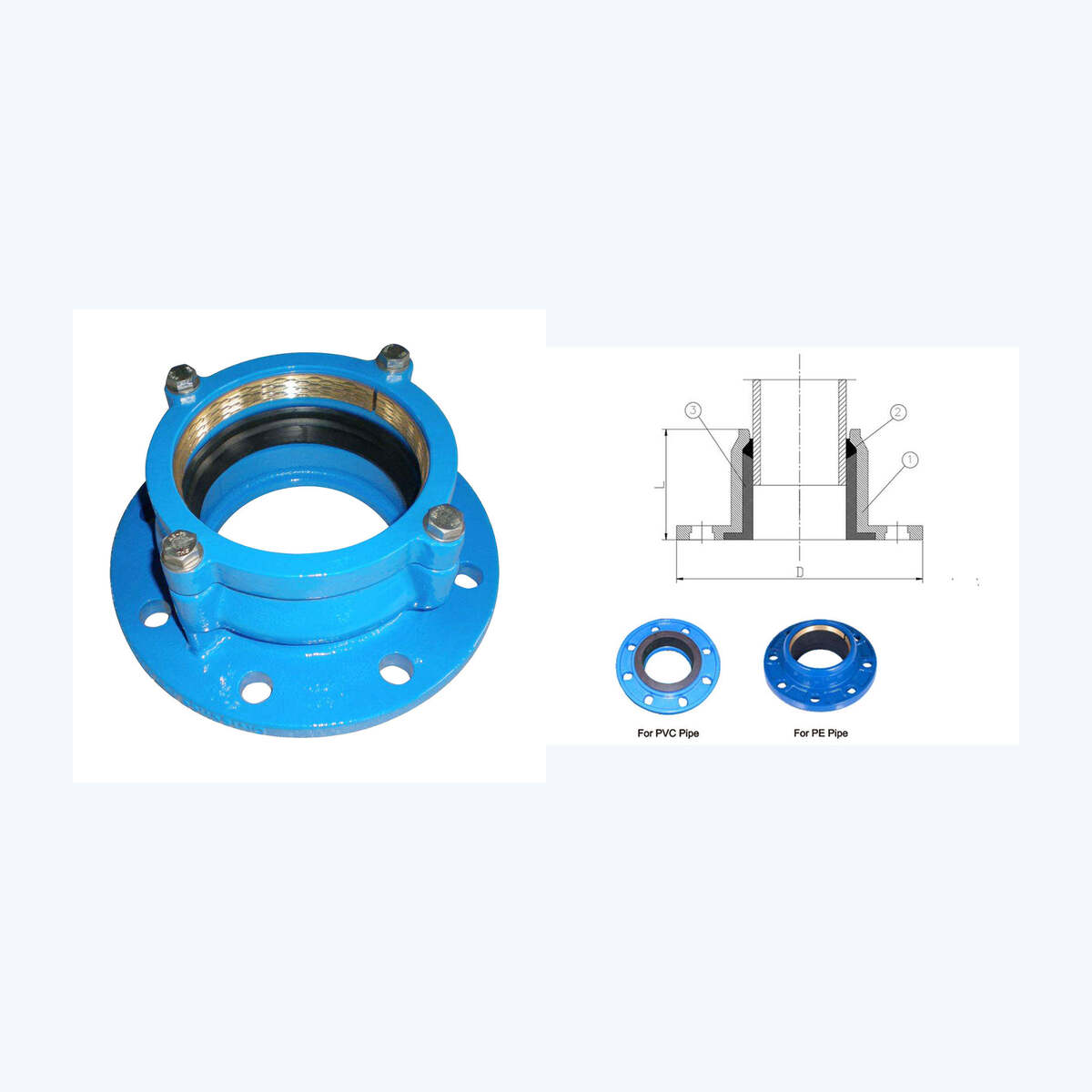

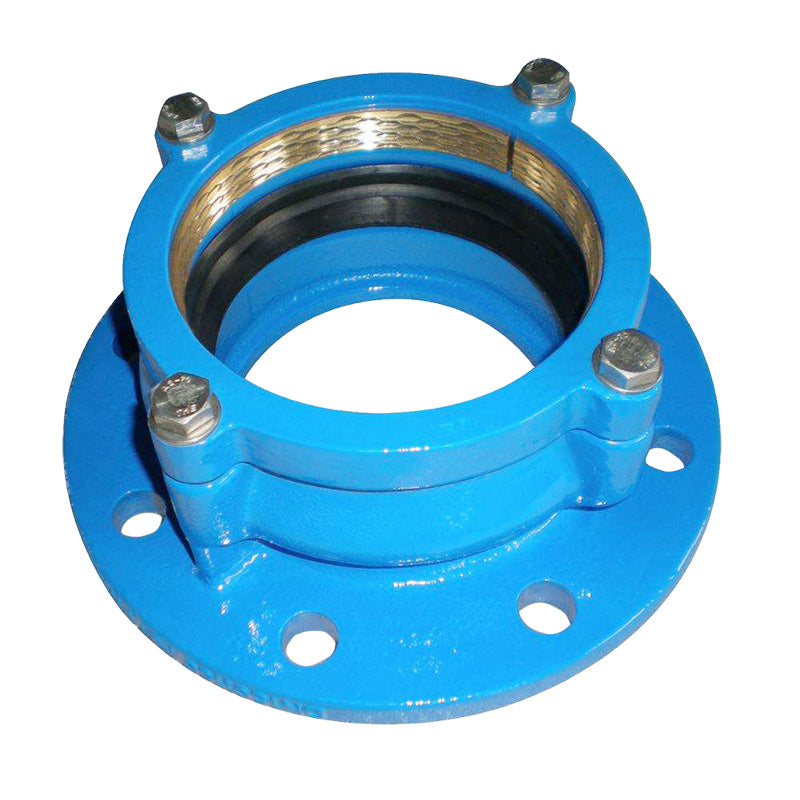

Quick Flange Adaptor For PE/PVC Pipe (and Dl pipe)
Configured to your size, pressure and application
Product Facts
- SizeDN50; DN65; DN80; DN100; DN125; DN150; DN200; DN225; DN250; DN300
- MaterialDuctile iron
- ConnectionFlanged
- StandardEN 1563; EN 681-1; CuZn36Pb3
Certification and final configuration are confirmed for the quoted product.
Product specifications
Specifications
- Size
- DN50; DN65; DN80; DN100; DN125; DN150; DN200; DN225; DN250; DN300
- Material
- Ductile iron
- Connection
- Flanged
- Standard
- EN 1563; EN 681-1; CuZn36Pb3
Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.
Before you request a quote
Match the adaptor to the actual pipe outside diameter
This ductile iron quick flange adaptor reference lists nominal sizes from DN50 to DN300. The nominal label is a starting point; pipe outside diameter and the flange drilling still need to match the proposed assembly.
Compare specifications below- Send pipe material, outside diameter and SDR or wall thickness where applicable.
- Identify the flange drilling standard and nominal pressure designation.
- Confirm whether axial restraint and a pipe support insert are required.
- State the fluid and temperature so the proposed seal can be reviewed.
Will the same adaptor fit every PE or PVC pipe with the same DN?
Do not assume that nominal size alone establishes fit. Send the pipe outside diameter and pipe specification so BAODUN can confirm the applicable adaptor range.

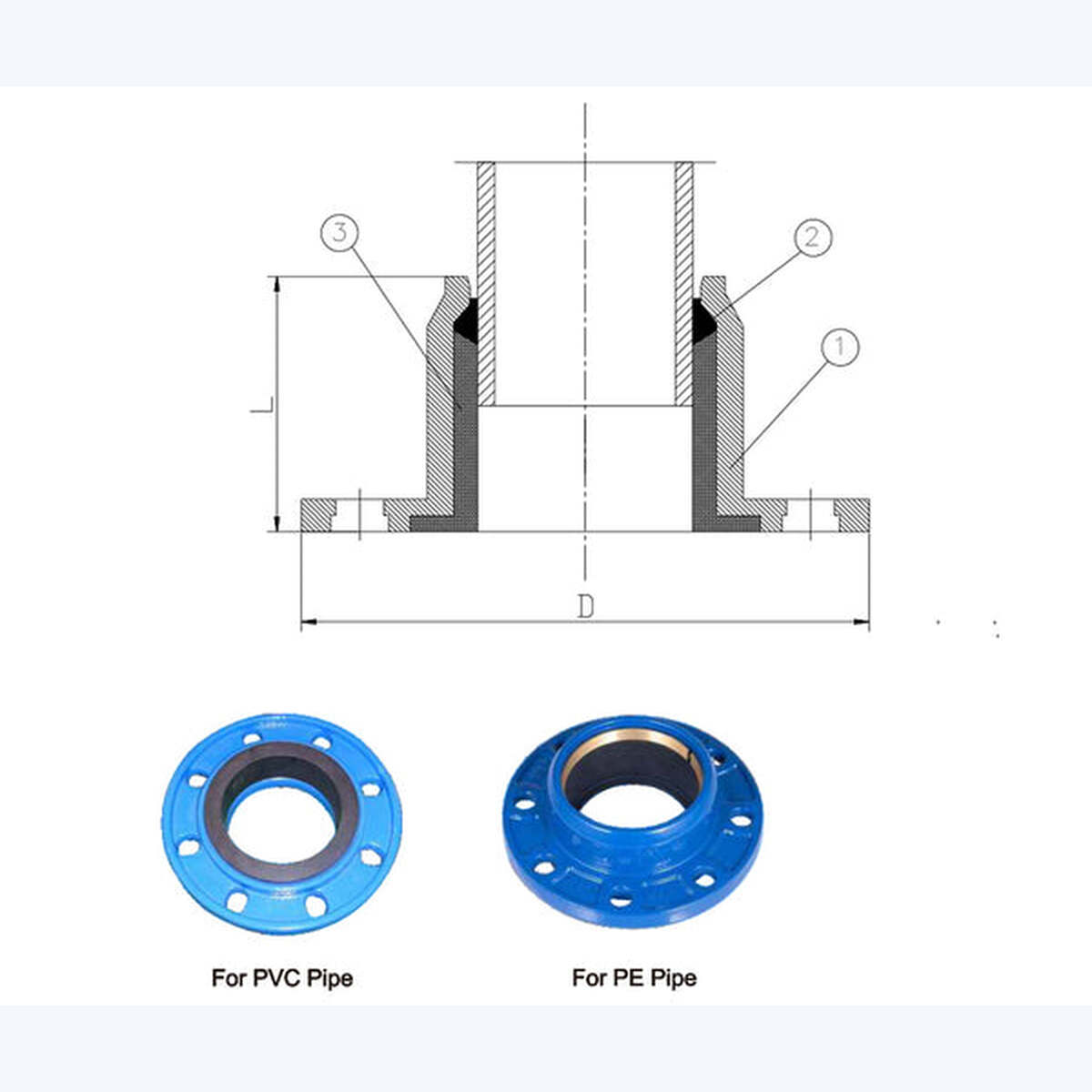

Technical Drawings
Reference drawings support requirement review. Final dimensions are confirmed against the RFQ before quotation.
Procurement Summary
Published facts for this product include Size: DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN225, DN250, DN300; Material: Ductile iron; Connection: Flanged; Standard: En1563, EN681-1, CuZn36Pb3. Share the required model, project specification and document list for confirmation before quotation.
Document Status
Required documents are confirmed for the quoted product and project requirements.
