Flanges

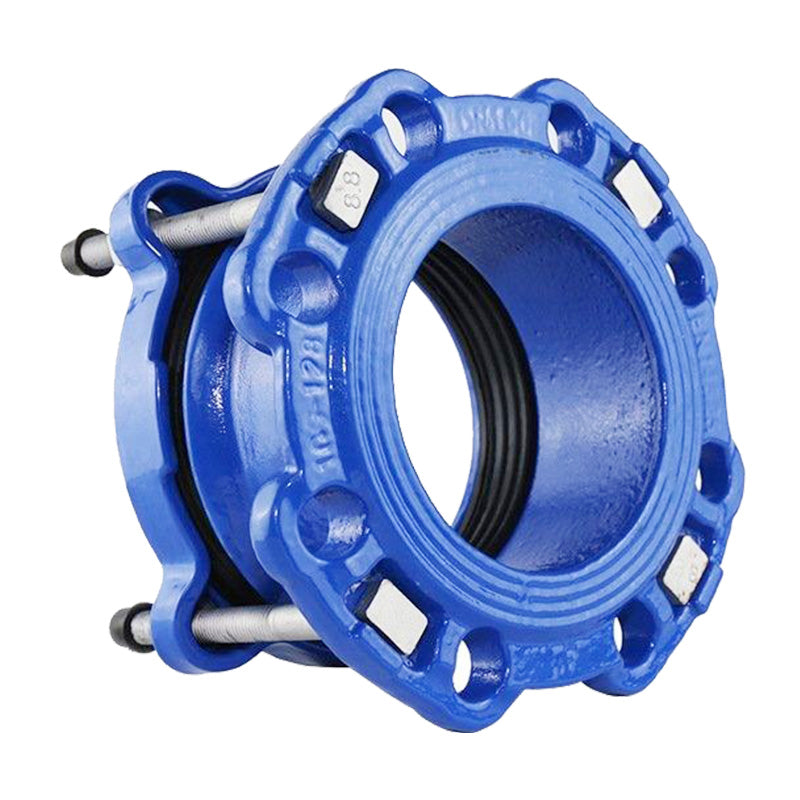

Universal Flange Adaptor(wide range)

Configured to your size, pressure and application

Universal Flange Adaptor(wide range)

Product Facts

  • SizeDN50; DN65; DN80; DN100; DN125; DN150; DN200; DN250; DN300; DN350; DN400; DN450; DN500; DN600
  • MaterialDuctile iron
  • ConnectionFlanged
  • StandardS235/EN 1563; EN 1563; ISO 898-1; EN 681-1; EN 14901
Project-specific documentationTell us which inspection records or certificates your project requires.

Certification and final configuration are confirmed for the quoted product.

Request a QuoteCompare Models

Product specifications

Specifications

Size
DN50; DN65; DN80; DN100; DN125; DN150; DN200; DN250; DN300; DN350; DN400; DN450; DN500; DN600
Material
Ductile iron
Connection
Flanged
Standard
S235/EN 1563; EN 1563; ISO 898-1; EN 681-1; EN 14901

Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.

Technical Drawings

Reference drawings support requirement review. Final dimensions are confirmed against the RFQ before quotation.

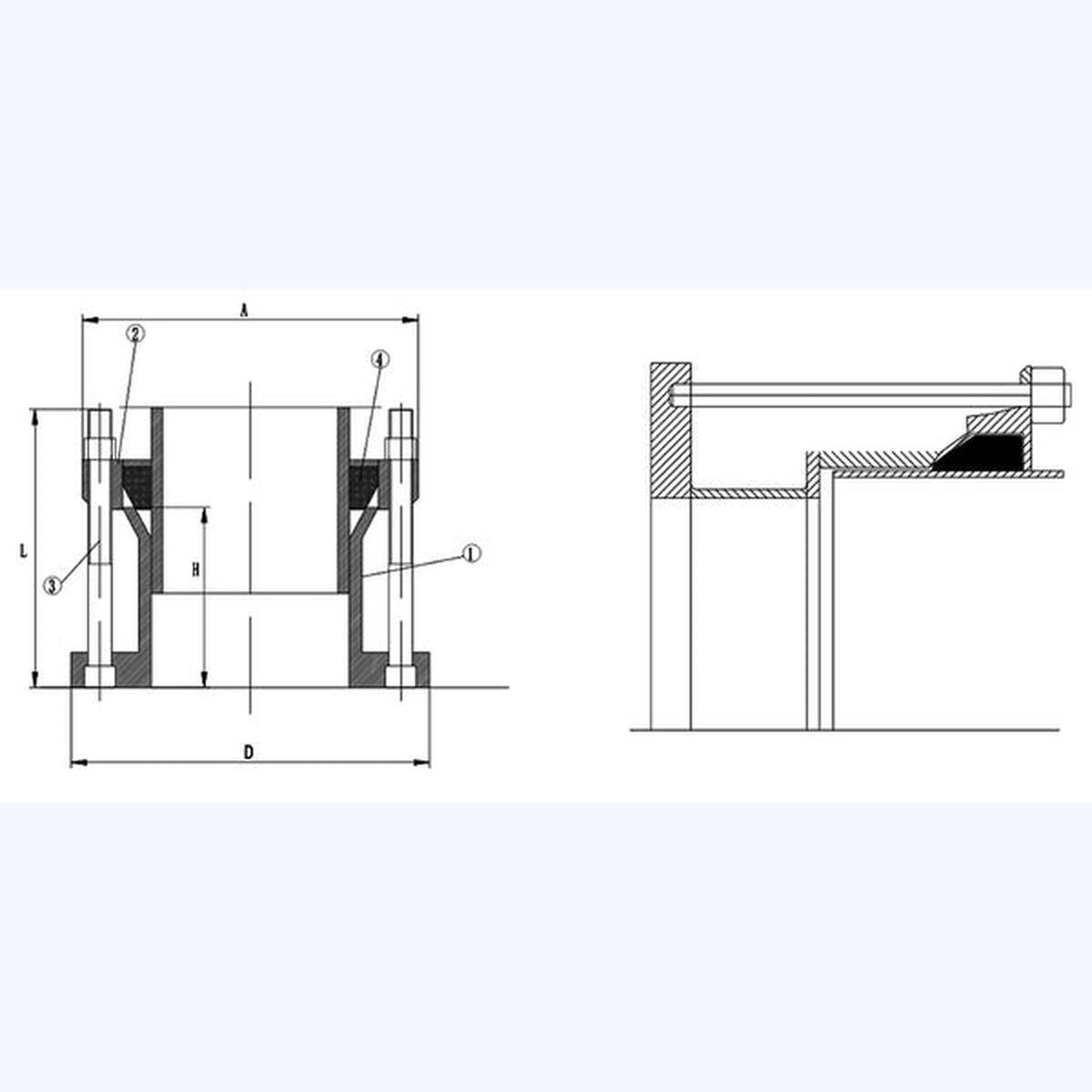

Universal Flange Adaptor(wide range) technical drawing

Technical Data

Published data pages are organized here so the product gallery remains visually focused.

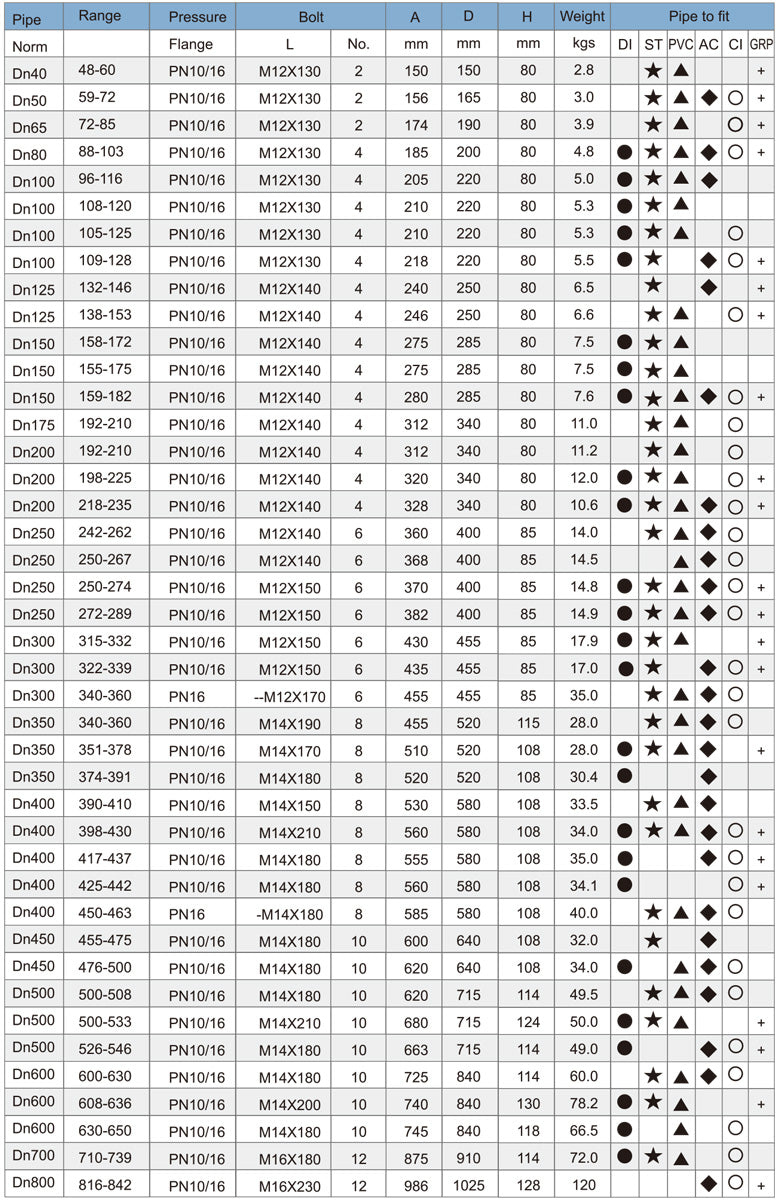

Universal Flange Adaptor(wide range) technical data page

Procurement Summary

Published facts for this product include Size: DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600; Material: Ductile iron; Connection: Flanged; Standard: S235/EN1563, En1563, ISO898-1, EN681-1, EN14901. Share the required model, project specification and document list for confirmation before quotation.

Open the Buyer Comparison Guide

Document Status

Required documents are confirmed for the quoted product and project requirements.
